CE ROHS Solar Pumping Controller 7.5 Kw Solar Inverter 99.6% Efficiency

Name: CE ROHS Solar Pumping Controller 75 Kw Solar Inverter 996 Efficiency
Brand: VEIKONG
Price: 1 USD

Quality CE ROHS Solar Pumping Controller 7.5 Kw Solar Inverter 99.6% Efficiency wholesale

Brand Name : VEIKONG

Model Number : VFD510-40T00750-PV

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15000pcs per Month

Delivery Time : 3 days, depend on the order quantity

Packaging Details : Carton and Wooden Box

Product Name : 380V 7.5KW Solar Pump Inverter

Current : 17A

Power : 7.5KW/10HP

Input Type : Support AC and DC input

Output type : 3 Phase

Efficiency : More than 99.6%

Contact Now

IP65 380V 7.5KW Solar Pump Inverter For Solar Irrigation System

Product Features

1. Operates without grid directly from photovoltaic (PV) cells

2. Automatic start and stop with solar radiation

3. Built-in maximum power point tracking (MPPT)

4. Easy installation and set-up for serial production

5. Compatible with all pump types

6. Dual supply capability with change over switch - solar and grid compatible

7. Energy saving function and dry run self-learning function

8. Strong anti-interference ability, convenient for inverter assembly

9. IP65 protection grade, adapt to various harsh indoor and outdoor environments

Electrical Specifications and Power degree

	220V	380V
Max input DC voltage(VOC)	450V	800V
DC voltage range	200~450VDC	350~800VDC
Recommended DC input voltage range (Vmpp)	250V-400V	450V-600V
Recommended Input Operation Voltage	305V(Vmpp)	530V(Vmpp)
MPPT efficiency	>99%
Rated output voltage	1/3-phase 220VAC	3-phase 380-480VAC
Output frequency range	50/60Hz
Max efficiency of the machine	99%
Ambient temperature range	-10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method	Air cooling
Protection degree	IP65
Altitude	Below 1000m; above 1% for every additional 100m.
Standard	CE/ROHS

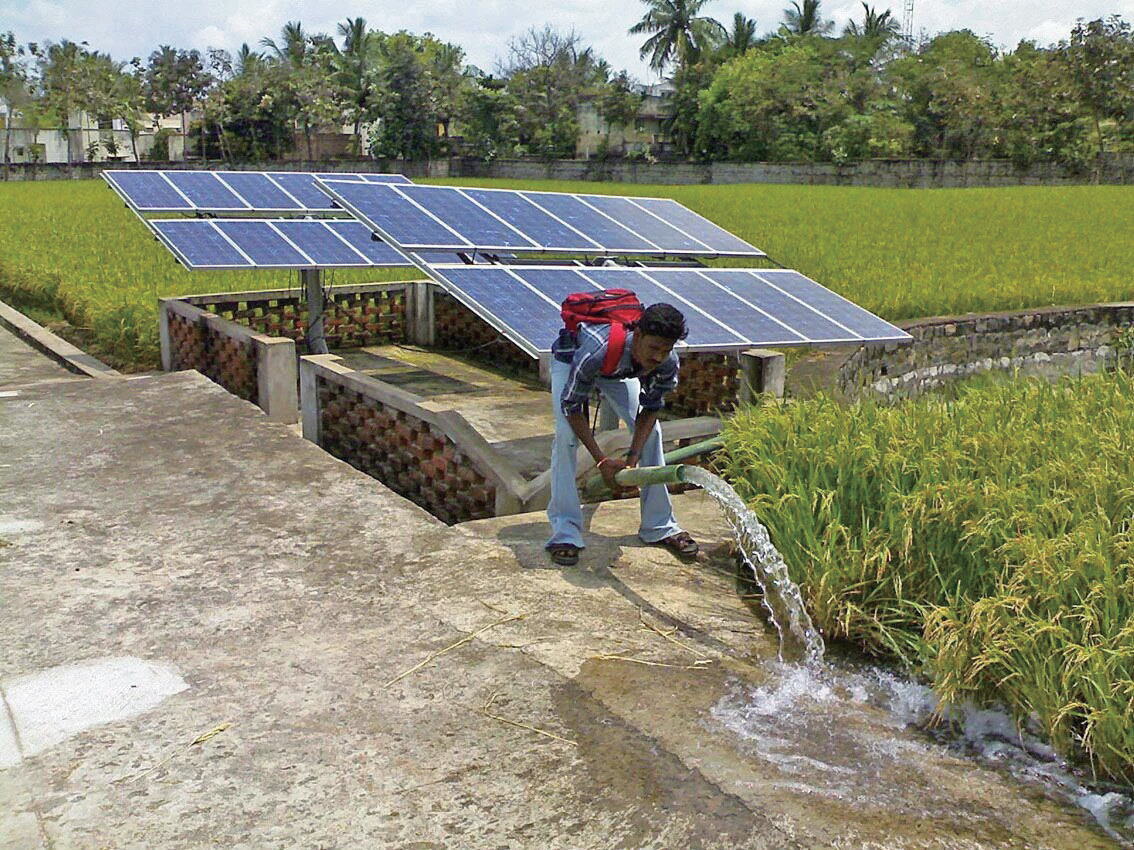

Product Application

CE ROHS Solar Pumping Controller 7.5 Kw Solar Inverter 99.6% Efficiency

FAQ

1. Would you accept to use our logo?

We would provide free OEM order depends on your quantity.

2. Where is your market?

Our products are popular all over the world as their cost-effective performance.

We hope you can join us and make mutual benefit from our long-term and co-win cooperation.

3. Are all inverters original?

Of course, we only do original product, because we have a strong and professional technical team.
